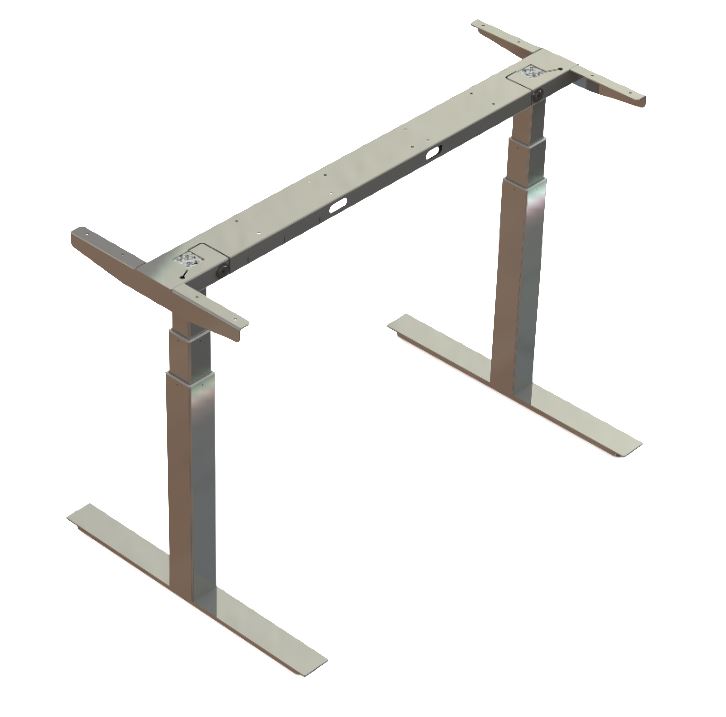

Electric height adjustable table frame

This electric height adjustable table frame is a high quality frame where all components are manufactured in Europe.
The frame is adjustable in height and can be used for table tops from 1200 mm and up to 1600 mm in length.

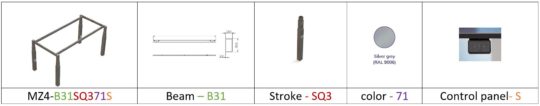

Below is described how a product number is put together. This is composed of the selected parts as shown below.

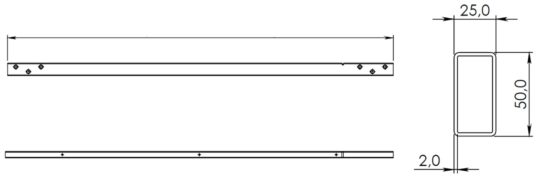

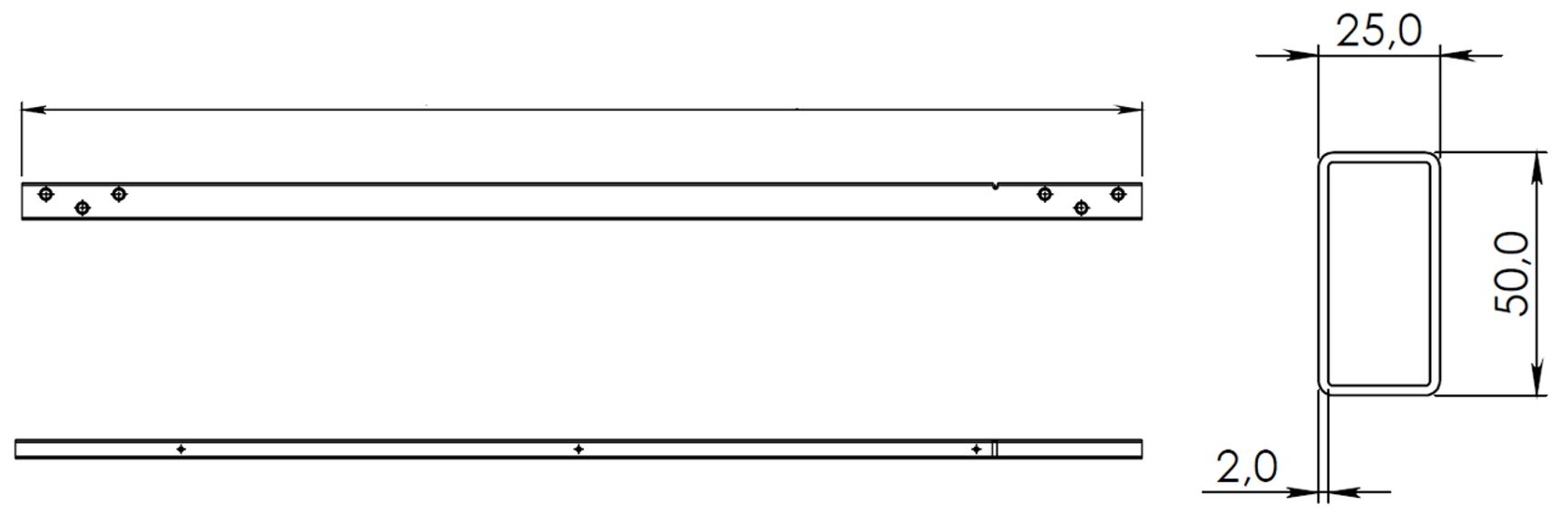

Beam version:

Beam version:

2 Stroke table:                                      3 Stroke table

B21 1130,0 for 1200mm table top      B31 1120,0 for 1200mm table top
B22 1330,0 for 1400mm table top      B32 1320,0 for 1400mm table top
B23 1530,0 for 1600mm table top      B33 1520,0 for 1600mm table top

Leg type: 2 – stroke.             Table range standard legs: 696 – 1196mm
Leg type: 3 – stroke.             Table range standard legs: 625 – 1275mm
